My Gamebuino Clone

CHEEZE Fri Nov 21, 2014 6:16 pm

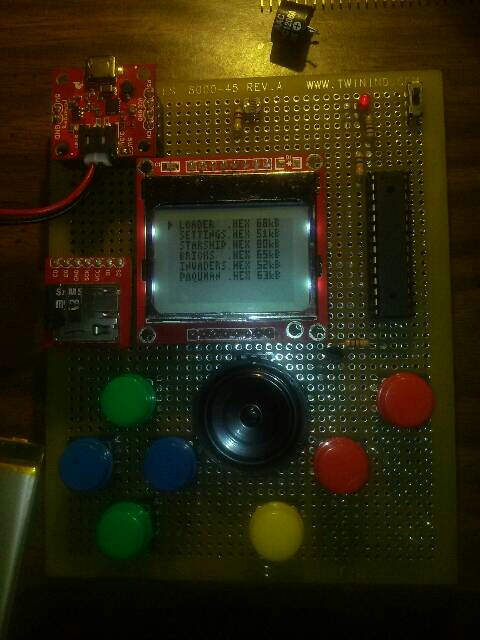

This is just a quick picture of my gamebuino clone that i finished hand soldering at 4 a.m. this morning . Let me know what you guys think, and thanks again for all the hard work.

Attachments: img20141121_123033.jpg

erico Fri Nov 21, 2014 6:17 pm

I think I see no picture... :lol:
Get some sleep ;)
cheers

CHEEZE Fri Nov 21, 2014 6:33 pm

Hahaa . I didnt notice the picture was too large. It should be there now. No time to sleep im at work walking around like a zombie :D

erico Fri Nov 21, 2014 6:40 pm

hehe, looks great!
The way you placed a ´boom box´ right in the middle of it brings a whole new charm to this one. :)

Congrats!

ps:make sure you keep your brain safe while zombying around! ;)

CHEEZE Fri Nov 21, 2014 9:20 pm

Yea i was going to use a little pc buzzer but it wasnt loud enough so i soldered some header pins to that little speaker and wired it up. Everything works great so far, my favorite part is the bootloader. Im going to wprk on an enclosure next. I might upload more pics if i dont go strait to sleep when i get home :roll:

erico Fri Nov 21, 2014 9:27 pm

Take a rest, but only if you must. ;)
I think that speaker is probably also going to bring a force feedback to your gamebuino version. :lol:

really well done!

CHEEZE Fri Nov 21, 2014 9:32 pm

Thank you good sir

Myndale Fri Nov 21, 2014 9:40 pm

What's that shield in the top left hand corner? Looks like it combines FTDI with power regulation?

CHEEZE Fri Nov 21, 2014 10:05 pm

https://www.sparkfun.com/products/11231

It doesn't combine the two, but i was thinking of a way to combine this with the ftdi basic module to allow one connection to charge the battery and upload sketches from usb.
