My Gambuino Clone
spunky Thu Mar 03, 2016 3:13 am
- ready to print at pcb shop,not shure if it will even work,i get 3 for £40 i think they will work,ive gone over the schematic enough times,shame the board is square lol its gona be small though 10cm x 8cm and it takes an sd card breakout,it plugs in on the left where the 6 pin header is,battery will go in center its got no charge circuit but will have a ftdi for bootloader etc i just hope ive got the screen leds lined up properly i can see that being a bugger but may be lucky with it.

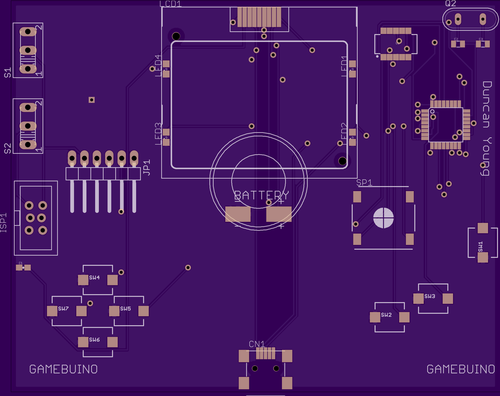

- FINISHED.png (82.12 KiB) Viewed 6808 times
spunky Thu Mar 03, 2016 3:19 am

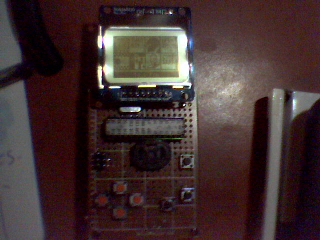

- both my clones
- my clone 1.jpg (65.71 KiB) Viewed 6807 times
spunky Thu Mar 03, 2016 3:19 am

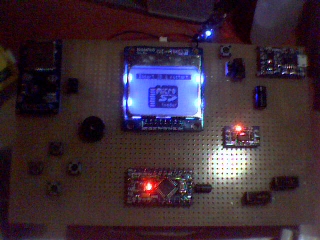

- my other clone
- my clone 2.jpg (70.68 KiB) Viewed 6807 times
Retrogadgets Sat Mar 05, 2016 9:51 am
spunky wrote:
checkout www.dirtypcbs.com you could have had 10 boards for £29.00 with a 10 days delivered back to you from china !
theyre great quality
albertinjo Wed Mar 09, 2016 12:01 pm
Nice
Here's mine
Spunky your scrren is probabbly flickering? Mybe i'm wrong, anyway...put a large capacitor near the screen power supply and it should be a lot better... took me a while to figure out
Here's mine
Spunky your scrren is probabbly flickering? Mybe i'm wrong, anyway...put a large capacitor near the screen power supply and it should be a lot better... took me a while to figure out

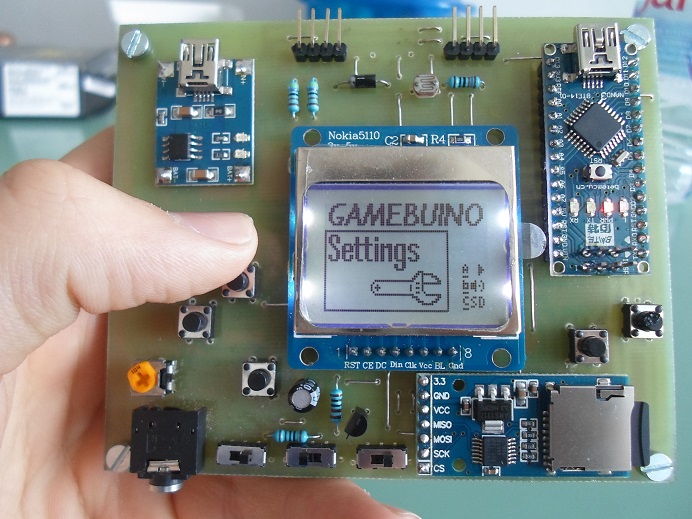

- SAM_3259.JPG (215.81 KiB) Viewed 6738 times
spunky Fri Sep 23, 2016 9:09 pm
Hi,my screen is ok no flicker or anything,my sound isnt that loud but its ok,i didnt amp it up with a transistor lol but it works fine,yours looks great.
spunky Fri Sep 23, 2016 9:10 pm
Why have you 3 switches at the bottom?
rodot Mon Sep 26, 2016 7:47 am
Albertinjo said in this post that it was for backlight control and manual muting.
Retrogadgets Fri Oct 07, 2016 6:13 pm
My gamebuino compatible - The MAKERbuino in partnership with Albert Gajšak
Retrogadgets Fri Oct 07, 2016 6:31 pm
A diy version of gamebuino with standard components, no surface mount technology
our website at http://www.makerbuino.com/
tindie shop at https://www.tindie.com/products/dava_2/ ... rod_search
see you there
our website at http://www.makerbuino.com/
tindie shop at https://www.tindie.com/products/dava_2/ ... rod_search
see you there

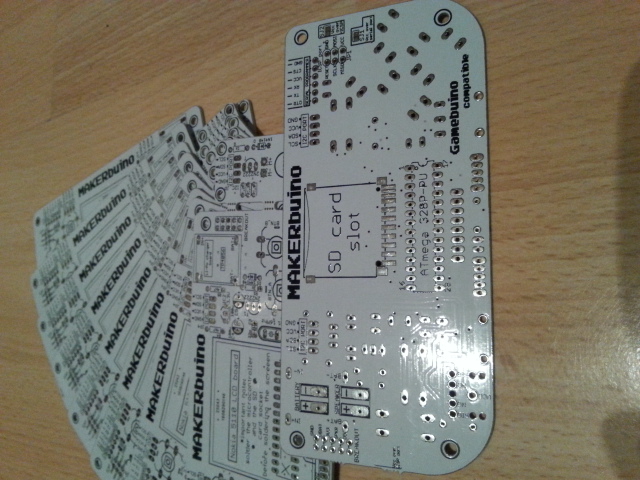

Attachments: 20161007_192822.jpg
erico Sat Oct 15, 2016 3:10 am
That is pretty great! I see you increased the console size, was it because of the larger buttons or something related to the pcb? Or something else entirely? Cheers! :)
albertinjo Wed Oct 19, 2016 2:55 pm
erico wrote:That is pretty great! I see you increased the console size, was it because of the larger buttons or something related to the pcb? Or something else entirely? Cheers! :)
Erico hi, this is a Gamebuino inspired board emphasizes the DIY educational purpose by having all components through hole and easy to solder (expect the SMD sd socket that is really big and easy to solder with no special tools). It is this size because of the through hole components.
It will be sold as a kit. You can read more about it on http://www.makerbuino.com
WBR
Albert
erico Wed Oct 19, 2016 8:46 pm
ahhh, I see, thanks for clarifying. Will check the site.
