gamebox13 Thu Dec 22, 2016 7:23 pm

Finally I made my own gamebuino after second attempt. Firstable I'd made it on DIP version 328p, which has not ADC6,7 and LCD which not worked less 5 volts. Now it works fine, but I have some problems with settings, sometimes some values is corrupts.
I've made some changes in original schematics: LP2590/3.3 as voltage regulator and TP4056 as charger.

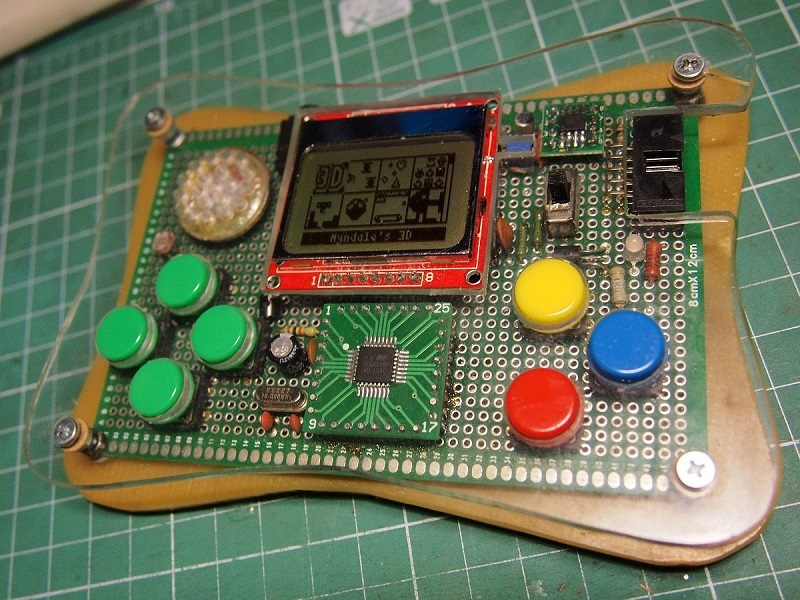

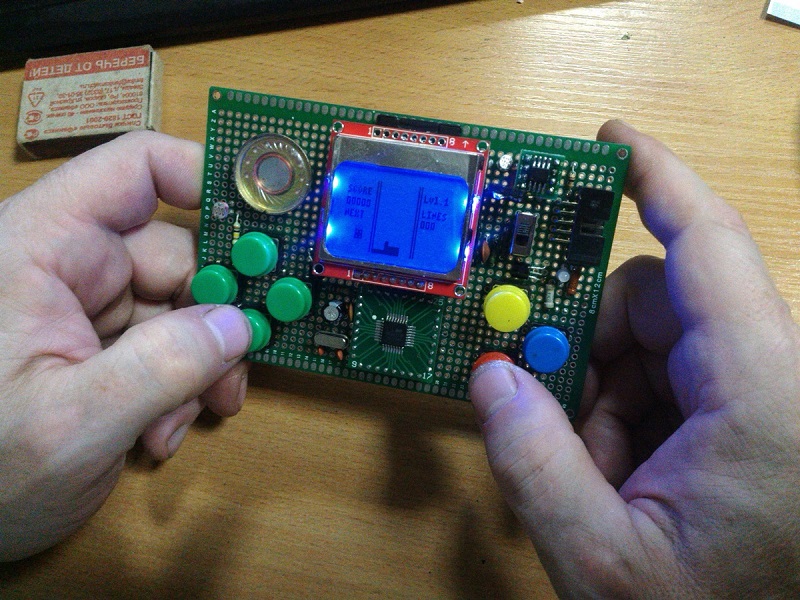

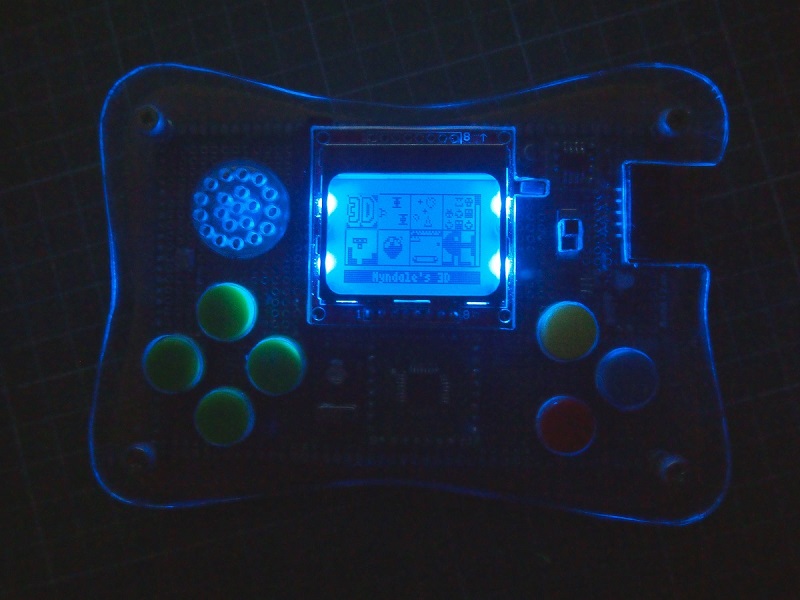

: DSC_1620 - копия.JPG (245.1 KiB) Viewed 4408 times

: PC220289 - копия.JPG (255.92 KiB) Viewed 4408 times

: PC220291 - копия.JPG (116.16 KiB) Viewed 4408 times
