SMD Gamebuino clone
bobricius Thu Jun 01, 2017 12:13 pm
Hi, I presenting my Gamebuino clone
My project page ... https://hackaday.io/project/25161-open-game-console-gamebuino-clone
My project page ... https://hackaday.io/project/25161-open-game-console-gamebuino-clone
Sorunome Thu Jun 01, 2017 1:57 pm
That is looking pretty rad, I like it ^.^
Myndale Thu Jun 01, 2017 10:23 pm
Wow, very tight! What/who do you use for your PCB design and manufacture?
erico Fri Jun 02, 2017 4:04 am
Yep, tight is the adjective I was going to use too, great work!
Are you not offering the expansion/extension capabilities of the original?
Really great work, quite a beauty!
Are you not offering the expansion/extension capabilities of the original?
Really great work, quite a beauty!
rodot Fri Jun 02, 2017 8:59 am
Neat design, I like how you use the PCB as a case.
Are the components on the back exposed ? Do you have any picture of the back ?
Are the components on the back exposed ? Do you have any picture of the back ?
bobricius Thu Jun 08, 2017 7:04 am
Myndale wrote:Wow, very tight! What/who do you use for your PCB design and manufacture?
Designed in Eagle, Manufactured in seedstudio
bobricius Thu Jun 08, 2017 7:10 am
rodot wrote:Neat design, I like how you use the PCB as a case.
Are the components on the back exposed ? Do you have any picture of the back ?

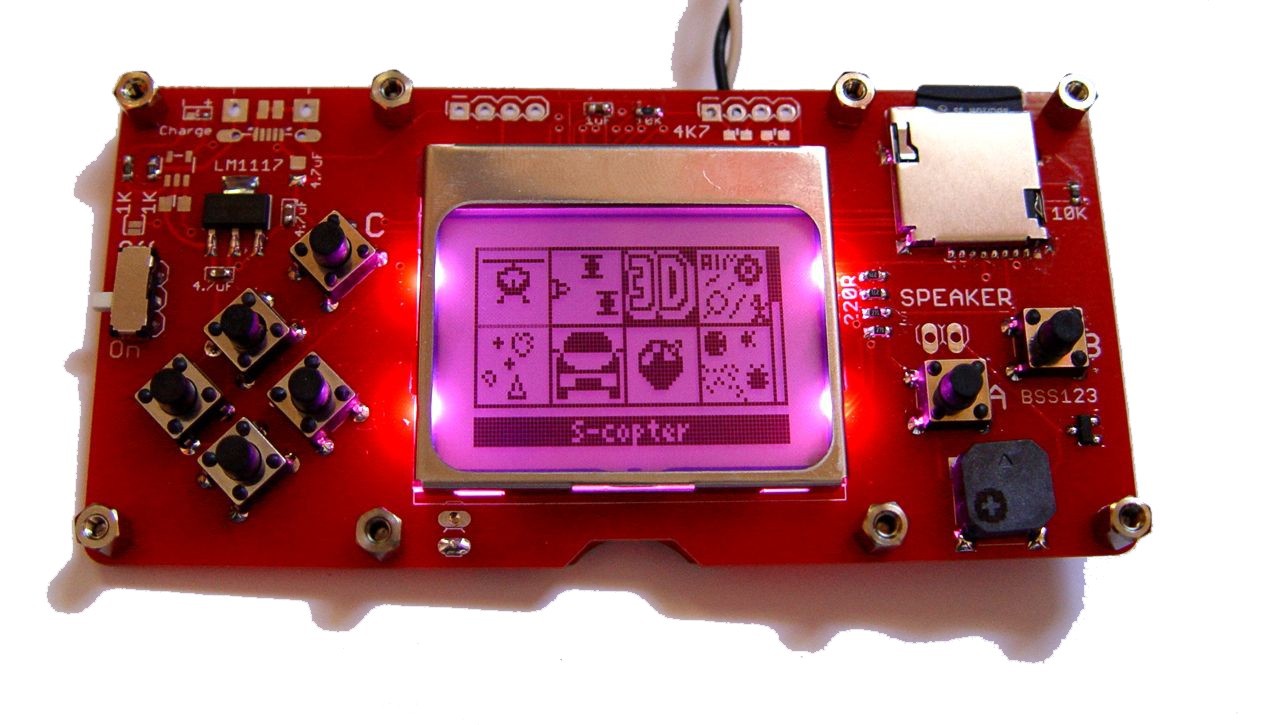

Yes components on back are exposed, a designed boards to fit in 10x10cm PCB prototype batch.
Back picture is on project page https://hackaday.io/project/25161-open-game-console-gamebuino-clone
I tested pcb case on this project https://hackaday.io/project/15606-diy-gsm-arduino-fr4-cell-phone I think thai is good way :-)
But I have problem with rubber connection of display, I hate 5110 displays
bobricius Thu Jun 08, 2017 7:14 am
erico wrote:Yep, tight is the adjective I was going to use too, great work!
Are you not offering the expansion/extension capabilities of the original?
Really great work, quite a beauty!
It have IIC and UART connector, no FTDI, I just uploaded SD bootloader with usbasp and put games on SD card.
lcd display have bad connection and button A / B are swapped, all other work without problem
