Snake

Snake by Ripper121

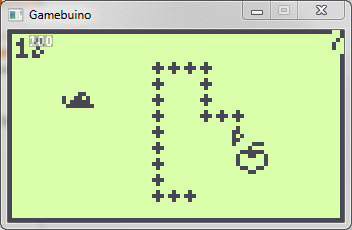

The player attempts to eat objects by running into them with the head of the snake. Each object eaten makes the snake longer, so maneuvering is progressively more difficult.

Controles:

Up = move the snake up
Down = move the snake down
Left = move the snake left
Right = move the snake right
C = Pause

System Requirements:

No extension module needed

Development thread : Link

Download Zip containing the source code, HEX file and ELF file:
Download

Pay what you want :)


Source Code:

Code: Select all

//imports the SPI library (needed to communicate with Gamebuino's screen)
#include <SPI.h>
//importe the Gamebuino library
#include <Gamebuino.h>
//creates a Gamebuino object named gb
Gamebuino gb;

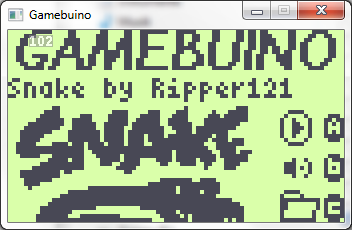

const byte logo[] PROGMEM =
{
  64, 30,
  B00000000, B00000000, B00000000, B00000000, B00000000, B00000000, B00000000, B00000000,
  B00000000, B00011000, B00000000, B00000000, B00000000, B00001000, B00000000, B01110000,
  B00000000, B01111000, B00000000, B00111100, B00011100, B00111000, B00010001, B11110000,
  B00000000, B11111000, B00111000, B01111100, B01111100, B01111000, B00111011, B11110000,
  B00000001, B11111100, B11111000, B01111100, B11111100, B11111000, B01111111, B11110000,
  B00000111, B11111100, B11111100, B11111101, B11111100, B11111100, B01111111, B11000000,
  B00001111, B11111000, B11111100, B11111001, B11111110, B01111101, B11111111, B10000000,
  B00011111, B11100001, B11111110, B11111011, B11111110, B00111101, B11111110, B00000000,
  B00011111, B10000001, B11111110, B11111011, B11011110, B11111111, B11101110, B00000000,
  B00011111, B00000001, B11111110, B11111011, B11011111, B11111111, B11011110, B11100000,
  B00111110, B00011110, B11101111, B01111011, B11001111, B11111111, B10001111, B11100000,
  B00111111, B11111111, B11101111, B11111111, B11111111, B11111111, B11001111, B10000000,
  B00111111, B11111111, B11100111, B11111111, B11111111, B10111111, B11100111, B10111000,
  B00011111, B00011111, B11100011, B11110111, B11111111, B10111111, B11110111, B11110000,
  B00000000, B00111110, B11100001, B11110111, B10000111, B10111110, B11110011, B11110000,
  B00000000, B11111111, B11100001, B11001111, B10000011, B00011110, B01100011, B11000000,
  B00000011, B11111111, B11100000, B00011111, B00000000, B00000000, B01000011, B10000000,
  B00011111, B11111011, B00000000, B00000110, B00000000, B00000000, B00000000, B00000000,
  B00011111, B11111000, B00000000, B00000000, B00000000, B00000000, B00000000, B00000000,
  B00001111, B11100000, B00000000, B00000000, B00000011, B11111100, B11110000, B00000000,
  B00001111, B00000000, B00000000, B00000000, B00011111, B11111111, B11111000, B00000000,
  B00000100, B00000000, B00001111, B11111111, B11111111, B11011111, B11111000, B00000000,
  B00000000, B00000001, B11111111, B11111111, B11111111, B11011111, B01111000, B00000000,
  B00000000, B00000111, B11111111, B11111111, B11111111, B11111111, B11110000, B00000000,
  B00000000, B00011111, B11111111, B11111111, B11111111, B11111111, B11111111, B00000000,
  B00000000, B00111111, B11111111, B11111111, B11111111, B11111111, B11111111, B11000000,
  B00000000, B11111111, B11111100, B00000000, B01111111, B11111111, B11111111, B11100000,
  B00000000, B11111111, B00000000, B00000000, B00000111, B11011111, B11111111, B11100000,
  B00000001, B11111110, B00111111, B11110000, B00000011, B11101011, B11111111, B11100000,
  B00000001, B11111111, B11111111, B11111111, B11110001, B11111011, B11111101, B01100000,
};
const byte headL[] PROGMEM = {
  5, 3,
  B00100000,
  B01011000,
  B11110000,
};
const byte headR[] PROGMEM = {
  5, 3,
  B00100000,
  B11010000,
  B01111000,
};
const byte headU[] PROGMEM = {
  3, 5,
  B10000000,
  B11000000,
  B10100000,
  B11000000,
  B01000000,
};
const byte headD[] PROGMEM = {
  3, 5,
  B01000000,
  B11000000,
  B10100000,
  B11000000,
  B10000000,
};

const byte bodyH[] PROGMEM =
{
  3, 3,
  B01000000,
  B11100000,
  B01000000
};
const byte bodyV[] PROGMEM =
{
  3, 3,
  B01000000,
  B11100000,
  B01000000
};

const byte mouse[] PROGMEM =
{
  8, 4,
  B00001100,
  B10011010,
  B10111110,
  B01111111
};
const byte apple[] PROGMEM = {
  8, 8,
  B00001110,
  B00010000,
  B01111110,
  B10011001,
  B10000001,
  B10000001,
  B01100110,
  B00011000,
};

// Game constants
boolean paused = false;
// Direction
#define  TOP    0
#define  RIGHT  1
#define  BOTTOM 2
#define  LEFT   3
//Game Speed
unsigned long prevTime = 0;                        // for gamedelay (ms)
int delayTime = 500;                               // Game step in ms

//Snake
#define MAX_SNAKE_LENGTH 200                       //needs much dynamic memmory!!!!
#define START_SNAKE_LENGTH 2
char direction = TOP;                              // direction of movement
typedef struct
{
  char x;
  char y;
  byte w;
  byte h;
  byte Length;
}  snake;
snake Snake[MAX_SNAKE_LENGTH];

//Food
#define FOOD_TYPES 2
#define MOUSE 0
#define APPLE 1
typedef struct
{
  char x;
  char y;
  byte w;
  byte h;
  byte points;
  byte type;
  boolean exist;
}  food;
food Food[FOOD_TYPES];

void setup() {
  // initialize the Gamebuino object
  gb.begin();
  gb.startMenu(F("Snake by Ripper121"), logo);
  initGame();
}

void loop(void)
{
  if (gb.update()) {
    if (gb.buttons.pressed(BTN_C)) {
      paused = !paused; //toggle paused state
    }

    if (!paused) {
      //      if (gb.buttons.pressed(BTN_LEFT)) {
      //        direction--;
      //        if (direction < 0) {
      //          direction = LEFT;
      //        }
      //      }
      //
      //      if (gb.buttons.pressed(BTN_RIGHT)) {
      //        direction++;
      //        if (direction > 3) {
      //          direction = TOP;
      //        }
      //      }

      if (gb.buttons.pressed(BTN_LEFT)) {
        direction = LEFT;
      }
      if (gb.buttons.pressed(BTN_RIGHT)) {
        direction = RIGHT;
      }
      if (gb.buttons.pressed(BTN_UP)) {
        direction = TOP;
      }
      if (gb.buttons.pressed(BTN_DOWN)) {
        direction = BOTTOM;
      }

      unsigned long currentTime = millis();
      if (currentTime - prevTime >= delayTime) {
        nextstep();
        prevTime = currentTime;
      }
    }
    draw();
  }
}

void initGame() {
  //Game Speed
  prevTime = 0;                        // for gamedelay (ms)
  delayTime = 200;                     // Game step in ms
  randomSeed(millis());
  //init snake
  makesnake();
  //init Food
  makeFood();
}

void makeFood() {
  for (byte i = 0; i < FOOD_TYPES; i++) {
    Food[i].exist = false;
  }
  char x , y;
  byte randomType = random(0, FOOD_TYPES);
  if (randomType == MOUSE) {
    Food[randomType].w = 8;
    Food[randomType].h = 4;
    Food[randomType].points = 2;
  }
  if (randomType == APPLE) {
    Food[randomType].w = 8;
    Food[randomType].h = 8;
    Food[randomType].points = 1;
  }
  x = random(0, LCDWIDTH - Food[randomType].w);
  y = random(0, LCDHEIGHT - Food[randomType].h);
  while (isPartOfSnake(x, y, Food[randomType].w, Food[randomType].h)) {
    x = random(0, LCDWIDTH - Food[randomType].w);
    y = random(0, LCDHEIGHT - Food[randomType].h);
  }
  Food[randomType].x = x;
  Food[randomType].y = y;
  Food[randomType].type = randomType;
  Food[randomType].exist = true;
}

void makesnake() {
  direction = TOP;                               // direction of movement
  Snake[0].Length = START_SNAKE_LENGTH;          // nr of parts of snake
  Snake[0].w = 4;
  Snake[0].h = 4;
  byte calcH = (LCDHEIGHT / Snake[0].h) / 2;
  byte calcW = (LCDWIDTH / Snake[0].w) / 2;
  Snake[0].x = calcH * Snake[0].h;
  Snake[0].y = calcW * Snake[0].w;
  for (byte i = 1; i < MAX_SNAKE_LENGTH; i++) {
    Snake[i].x = 0 - Snake[0].w;
    Snake[i].y = 0 - Snake[0].w;
    Snake[i].w = Snake[0].w;
    Snake[i].h = Snake[0].h;
    Snake[i].Length = Snake[0].Length;
  }
}

void draw() {
  drawScore();
  drawSnake();
  drawFood();
  gb.display.drawFastVLine(0, 0, LCDHEIGHT);
  gb.display.drawFastHLine(0, 0, LCDWIDTH);
  gb.display.drawFastVLine(LCDWIDTH-1, 0, LCDHEIGHT);
  gb.display.drawFastHLine(0, LCDHEIGHT-1, LCDWIDTH);
}

void drawSnake() {
  for (byte i = 0; i < Snake[0].Length; i++) {
    switch (direction) {
      case TOP:
        if (i == 0)
          gb.display.drawBitmap(Snake[i].x, Snake[i].y, headU);
        else
          gb.display.drawBitmap(Snake[i].x, Snake[i].y, bodyV);
        break;
      case RIGHT:
        if (i == 0)
          gb.display.drawBitmap(Snake[i].x, Snake[i].y, headR);
        else
          gb.display.drawBitmap(Snake[i].x, Snake[i].y, bodyH);
        break;
      case BOTTOM:
        if (i == 0)
          gb.display.drawBitmap(Snake[i].x, Snake[i].y, headD);
        else
          gb.display.drawBitmap(Snake[i].x, Snake[i].y, bodyV);
        break;
      case LEFT:
        if (i == 0)
          gb.display.drawBitmap(Snake[i].x, Snake[i].y, headL);
        else
          gb.display.drawBitmap(Snake[i].x, Snake[i].y, bodyH);
        break;
    }

  }
}

void drawFood() {
  for (byte i = 0; i < FOOD_TYPES; i++) {
    if (Food[i].exist) {
      if (Food[i].type == MOUSE)
        gb.display.drawBitmap(Food[i].x, Food[i].y, mouse);
      if (Food[i].type == APPLE)
        gb.display.drawBitmap(Food[i].x, Food[i].y, apple);
    }
  }
}

void drawScore() {
  gb.display.setTextSize(1);
  gb.display.setCursor(2, 2);
  gb.display.print(Snake[0].Length - START_SNAKE_LENGTH);
}

void nextstep() {
  for (byte i = Snake[0].Length - 1; i > 0; i--) {
    Snake[i].x = Snake[i - 1].x;
    Snake[i].y = Snake[i - 1].y;
  }

  switch (direction) {
    case TOP:
      Snake[0].y = Snake[0].y - Snake[0].w;
      break;
    case RIGHT:
      Snake[0].x = Snake[0].x + Snake[0].h;
      break;
    case BOTTOM:
      Snake[0].y = Snake[0].y + Snake[0].w;
      break;
    case LEFT:
      Snake[0].x = Snake[0].x - Snake[0].h;
      break;
  }

  SnakeInPlayField();

  for (byte i = 0; i < FOOD_TYPES; i++) {
    if (isPartOfSnake(Food[i].x, Food[i].y, Food[i].w, Food[i].h) && Food[i].exist) {
      Food[i].exist = false;
      Snake[0].Length += Food[i].points;
      if (Snake[0].Length > MAX_SNAKE_LENGTH)
        Snake[0].Length = MAX_SNAKE_LENGTH;
      if (Snake[0].Length < MAX_SNAKE_LENGTH) {
        makeFood();
      }
      else {
        Food[i].x = Food[i].y = -1;
      }
    }
  }

  if (isSnakePartOfSnake()) {
    gb.display.clear();
    gb.display.println("Game Over!");
    gb.display.println();
    gb.display.println("Score:");
    gb.display.println(Snake[0].Length - START_SNAKE_LENGTH);
    gb.display.update();
    initGame();
    delay(3000);
  }

}


boolean isPartOfSnake(char x, char y, byte w, byte h) {
  for (byte i = 0; i < Snake[0].Length - 1; i++) {
    if (gb.collideRectRect(Snake[i].x, Snake[i].y, Snake[i].w, Snake[i].h, x, y, w, h)) {
      return true;
      break;
    }
  }
  return false;
}

boolean isSnakePartOfSnake() {
  for (byte i = 1; i < Snake[0].Length; i++) {
    if (gb.collideRectRect(Snake[0].x, Snake[0].y, Snake[0].w, Snake[0].h, Snake[i].x, Snake[i].y, Snake[i].w, Snake[i].h)) {
      return true;
      break;
    }
  }
  return false;
}

void SnakeInPlayField() {
  if (Snake[0].x < 0) {
    Snake[0].x = LCDWIDTH - Snake[0].w;
  }
  if (Snake[0].y < 0) {
    Snake[0].y = LCDHEIGHT - Snake[0].h;
  }
  if (Snake[0].x > LCDWIDTH - Snake[0].h) {
    Snake[0].x = 0;
  }
  if (Snake[0].y > LCDHEIGHT - Snake[0].w) {
    Snake[0].y = 0;
  }
}

Hi, i have played all day at this game; all the times i lost because of a "bug".
When the snake go in one direction and i accidentally click on the opposite direction, i lost :evil:
So, I look at the code. Can i suggest a solution at this bug:

Code: Select all

if (gb.buttons.pressed(BTN_LEFT) && direction != RIGHT) {
        direction = LEFT;
      } else
      if (gb.buttons.pressed(BTN_RIGHT) && direction != LEFT) {
        direction = RIGHT;
      } else
      if (gb.buttons.pressed(BTN_UP) && direction != DOWN) {
        direction = TOP;
      } else
      if (gb.buttons.pressed(BTN_DOWN) && direction != TOP) {
        direction = BOTTOM;
      }


In addition i have see some piece of code that can be optimized, but now is too late and i'm too tired for work on it. :)

Yes I know this "problem", but I thinks its not a Bug its a feature xD.
If you like to remove it then pleas compile it and post your solution, so we have 2 versions.
So the player can choose the version he like to play ;)

hahaha ok i will do! :D

The game crashes after a few apples eaten. But not always at the same time. Part of the screen gets broken when this happens. Any idea? Maybe the random-placement of the fruit gets stuck?

I my test it works fine, i dont know why becouse i cant debugg it.
